Modern manufacturing chains for renewable energy storage and structural engineering rely on extremely clean raw material inputs to prevent structural failures. Electrolytic Manganese Metal Flakes for Steel Alloy Battery and Metallurgy Applications provide an optimized chemical solution to meet these demanding global standards. Supplied directly by ZhenAn, this High Purity Industrial Material features minimal gas and interstitial element carryover, helping downstream operations achieve predictable melt chemistry and stable crystal structures.
Chemical Properties of Electrolytic Manganese Metal Flakes

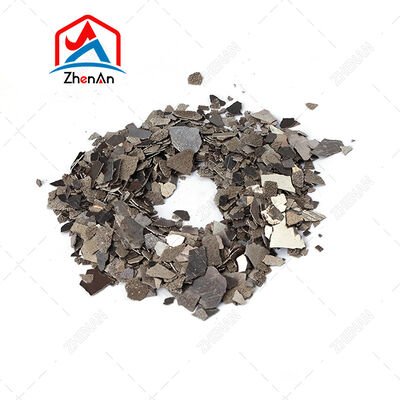

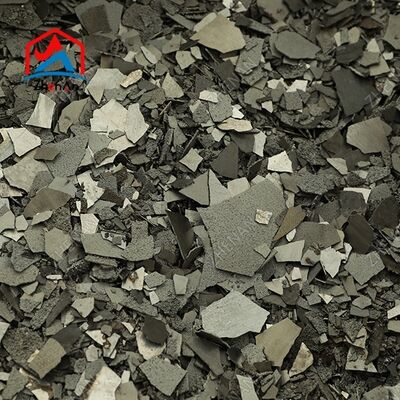

In high-end manufacturing, Electrolytic Manganese Metal Flakes are classified as an ultra-pure elemental material refined via acid leaching and electrowinning. This premium flake electrolytic manganese features an irregular, brittle sheet morphology. It is easily identified by its contrasting sides: a brilliant, silvery crystalline face from the cathode contact zone, and a dull, rough matte gray finish on the back.
By using an aqueous extraction process instead of traditional carbon-arc reduction, the material maintains a strict Mn 99.7% Minimum base. Industrial engineering teams prioritize these high purity manganese flakes because they lack the undesirable tramp elements found in standard bulk ferroalloys. This makes them ideal for formulating high-performance alloys and high-energy-density battery chemistries.
Refining Process for Metallurgical Grade Manganese Flakes
Producing high-purity, uniform metallurgical grade manganese flakes requires a continuous, multi-stage chemical and electrochemical sequence:
- Leaching Phase: Raw manganese carbonate or pre-reduced oxide ores are dissolved in hot sulfuric acid (H₂SO₄) alongside ammonium sulfate ((NH₄)₂SO₄) to form a highly concentrated manganese sulfate liquid.
- Trace Impurity Precipitation: Sulfide compounds and precise pH adjustments are introduced to force harmful elements—like iron, copper, lead, zinc, cobalt, and nickel—to precipitate completely out of the solution.
- Electrowinning Deposition: The purified liquid enters automated electrolytic cells equipped with titanium or stainless steel cathodes. A strong direct current causes pure manganese ions to form uniform metallic sheets on the plates.
- Mechanical Stripping & Processing: The pure metal layers are mechanically peeled, rinsed with passivation solutions to prevent oxidation, dried, and broken down to meet standard trade sizing.
EMM Chemical Specification Benchmarks
To ensure total structural safety inside high-frequency induction furnaces and battery chemical lines, each batch must meet a rigid EMM chemical specification:
| Elemental Parameter |
Electrolytic Manganese 99.7 Purity |
High Grade Manganese Flakes (Mn99.8) |
| Manganese (Mn) Content ≥ |
99.70% |
99.80% |
| Carbon (C) Fraction ≤ |
0.04% |
0.01% |
| Sulfur (S) Interstitial ≤ |
0.03% |
0.02% |
| Phosphorus (P) Limit ≤ |
0.005% |
0.003% |
| Iron (Fe) Accumulation ≤ |
0.02% |
0.01% |
| Silicon (Si) Residue ≤ |
0.01% |
0.005% |
Physical Traits and Manganese Flake Size Specification
Managing the physical Manganese Flake Size Specification prevents processing waste and ensures fast dissolution in industrial melts:
- Sizing Profiles: Standard flake thickness ranges from 1.0mm to 3.0mm, with irregular lateral sizing between 10mm and 50mm. This shape prevents the material from fracturing into fine dust during mechanical transport, reducing handling losses.
- Dissolution Rates: The high surface-area-to-mass ratio allows the material to dissolve rapidly in liquid steel, lowering processing times and energy consumption.
- Oxidation Protection: The flakes undergo a precise passivation wash to create a clean surface barrier that blocks moisture, keeping the material stable during long-term storage.
Applications in Green Energy and Lithium Battery Sectors
While metallurgy remains a core market, this high-purity manganese flakes form serves as a vital component in modern energy storage technologies:
- EV Battery Precursors: High-purity EMM flakes are dissolved in high-grade sulfuric acid to produce battery-grade Manganese Sulfate (MnSO₄). This chemical forms the core of lithium manganese iron phosphate (LMFP) and NMC electric vehicle batteries.
- High-Permeability Components: EMM provides a reliable base for creating specialized manganese oxides used in soft ferrite components, ensuring reliable signal transmission in advanced telecommunications gear.
Technical Comparison: Manganese Metal 99.7% vs 75% Ferromanganese
| Structural Dimension |
Manganese Metal 99.7% (EMM) |
High-Carbon Ferromanganese (HCFeMn) |
| Pure Mn Weight Fraction |
≥ 99.7% |
65.0% - 78.0% Base |
| Carbon Impurity Level |
≤ 0.04% Max (Ultra-Low) |
6.0% - 8.0% (High Carbon Risk) |
| Companion Iron Load |
Negligible (≤ 0.02%) |
Balances to 100% (High Fe Carryover) |
Frequently Asked Questions
What are the main applications of electrolytic manganese metal flakes in metallurgy and battery industries?
In metallurgy, EMM flakes are mainly used to manufacture 200 and 300 series stainless steels, high-strength low-alloy (HSLA) steels, and high-performance aluminum-copper castings. In the battery industry, they serve as the key chemical building block for producing high-purity manganese sulfate (MnSO₄), an essential active cathode component in modern electric vehicle batteries.
Why is high purity electrolytic manganese important for steel alloys and battery materials?
High purity prevents trace elements like carbon, phosphorus, and sulfur from entering the production line. In steelmaking, this protects the metal's weldability and toughness. In battery manufacturing, keeping impurities exceptionally low prevents premature degradation and internal short circuits, ensuring long-term battery safety and performance.
How does electrolytic manganese metal contribute to alloy performance improvement?
Manganese dissolves directly into the metallic crystal matrix, providing solid-solution strengthening that increases yield strength and resistance to mechanical impact. It also acts as an effective deoxidizer during the melting process, binding with trace sulfur to form stable manganese sulfides that prevent cracking during hot rolling.
What role does manganese play in lithium battery material production?
Manganese helps stabilize the crystal structure of transition-metal cathode oxides. In NMC and LMFP battery designs, it forms a robust framework that allows lithium ions to move freely during charge cycles, increasing thermal stability and lowering overall material costs compared to cobalt-heavy designs.
How does EMM purity affect downstream metallurgical and battery applications?
Lower purity can lead to structural defects. In steelmaking, elevated phosphorus levels can cause brittleness under cold conditions. In battery manufacturing, even tiny amounts of iron or copper contaminants can disrupt the cathode's electrochemical balance, causing increased self-discharge and reducing the battery's overall lifespan.
What industries consume electrolytic manganese metal flakes worldwide?
The global steel sector remains the largest consumer, particularly for stainless and structural alloy production. It is followed by the high-growth electric vehicle battery sector, the aluminum casting industry, and specialty chemical manufacturers who produce electronic-grade soft ferrites for power electronics.
What specifications are required for EMM used in steel and battery applications?
Standard steelmaking typically utilizes a standard grade featuring an electrolytic manganese 99.7 purity level. Battery manufacturing often mandates a premium low-gas 99.8% grade, which strictly limits trace elements to ensure optimal chemical synthesis and prevent contamination in the final precursor matrix.
How should buyers select electrolytic manganese metal flakes for different applications?
Buyers should match the purity specification to the requirements of their final product. For standard structural steel or aluminum casting, standard 99.7% flakes provide excellent, cost-effective performance. For premium lithium-ion battery production or vacuum aerospace melting, buyers should secure high-grade, low-impurity 99.8% material from a certified producer like ZhenAn (+86 15518824805).
